EPflex is a pioneer in the development and production of guide wires used in hospitals around the world. In addition to our comprehensive basic range, we also offer solutions that are individually tailored to your requirements.
ADVANTAGES
- from sample to serial production
- over 20 years of experience
- standardised and validated processes
- the highest quality standards
- packaging, sterilisation, CE certification
CUSTOM SOLUTIONS
- nitinol or stainless steel core material
- total length 20 cm to 800 cm
- diameter 0.006″ to 0.060″
- with and without length marking

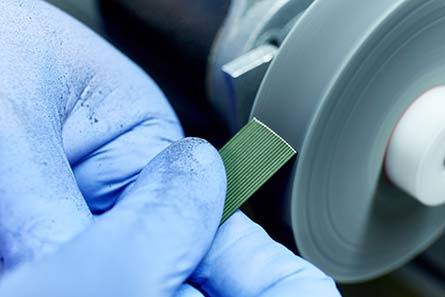

- individual grinding
- different coatings possible
- packaging according to individual requirements
- non-sterile or sterile packaging
- CE-certified
MORE INFORMATION
We have decades of expertise in the development and production of guide wires, from consulting and pilot production to the approval of new product variants. Whether you already have a precise idea of your ideal guide wire, or whether you need us to work with you and develop a custom-designed guide wire tailored to your requirements, please contact us.
With a large number of patents, we have repeatedly developed solutions over the years that have opened up completely new and unimagined possibilities for diagnosis and treatment for doctors.
OUR STANDARD GUIDE WIRES

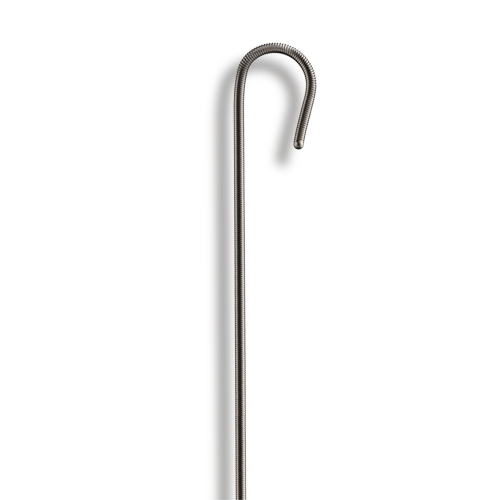

BASIC LINE GUIDE WIRE
Standard Length: 10 – 450 cm
Standard Diameter: 0.015“ – 0.054“
- Various dimensions and stiffnesses available
- Straight or J-tip
- One or both sides flexible
- PTFE coated or uncoated spring
- Cost-effective production

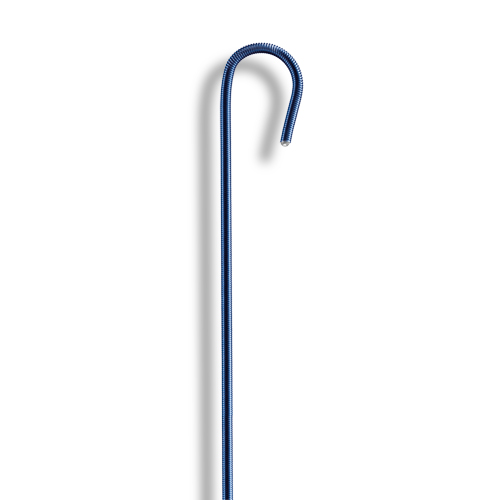

NITI LINE GUIDE WIRE
Standard Length: 45 – 70 cm
Standard Diameter: 0.018“ – 0.035“
- Straight or J-tip
- One or both sides flexible
- Nitinol core wire
- PTFE coated or uncoated spring
- With length markers available

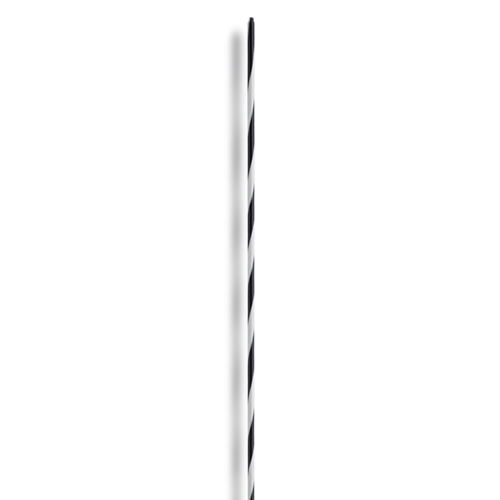

STRIPE LINE GUIDE WIRE
Standard Length: 150 – 450 cm
Standard Diameter: 0.035“
- Straight or angled tip
- Two-color PTFE heat shrink tube
(color choice according to customer specifi cation) - Nitinol core wire
- Tungsten or platinum spring for particularly good X-ray visibility at the wire tip

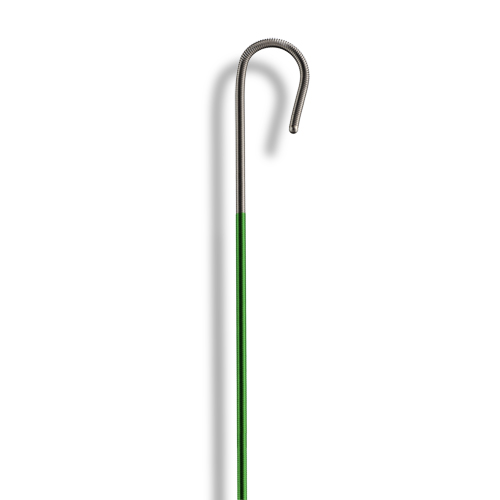

MICRO LINE GUIDE WIRE
Standard Length: 90 – 450 cm
Standard Diameter: 0.035“
- Straight or J-tip
- Stainless steel core wire for high stiffness
- Soft or flexible tip
- PTFE coated or uncoated shaft

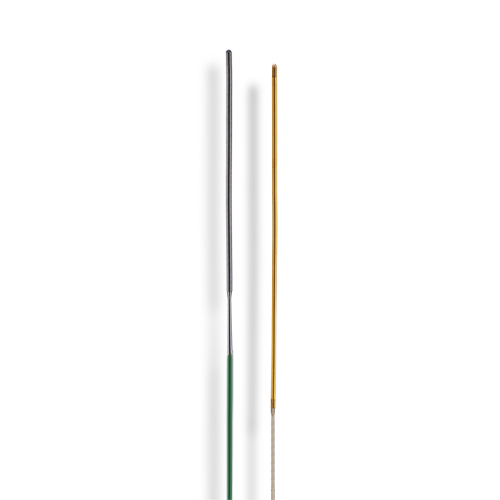

PTCA + PTA GUIDE WIRE
Standard Length: 190 cm (PTCA) / 60 – 260 cm (PTA)
Standard Diameter: 0.014“ / 0.014“ – 0.025“
- Stainless steel core wire provides high stiffness
- Nitinol core wire for flexibility
- PTFE coated or uncoated shaft
- Tungsten or platinum spring for particularly good X-ray visibility at the wire tip

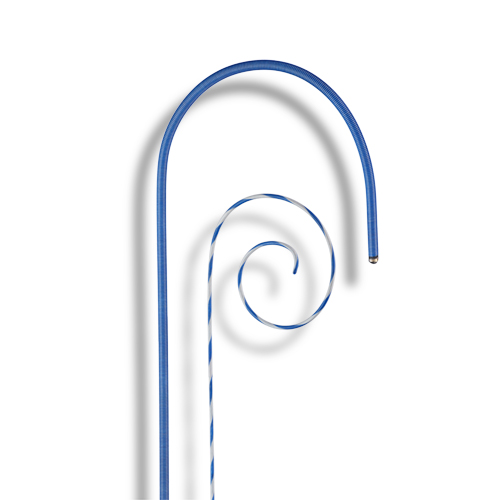

EVAR + TAVI GUIDE WIRE
Standard Length: 260 cm
Standard Diameter: 0.035“
- Straight or angled tip
- Two-color PTFE heat shrink tube
(color choice according to customer specifi cation) - Nitinol core wire
- Tungsten or platinum spring for particularly good X-ray visibility at the wire tip

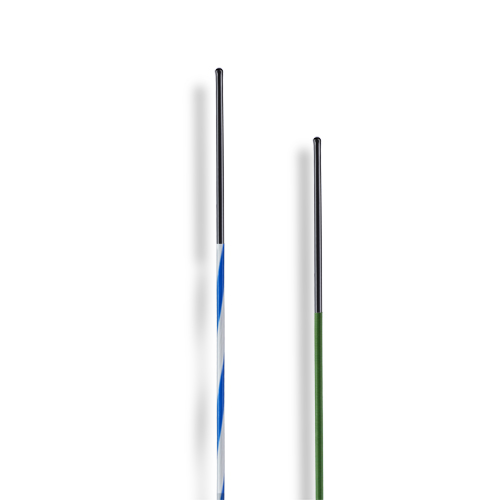

COMBI LINE GUIDE WIRE
Standard Length: 150 – 450 cm / Spitze: 5 cm
Standard Diameter: 0.035“
- Straight or angled tip
- With spring or shrink tube on the shaft
- Nitinol core wire
- One or both sides flexible
- 5 cm hydrophilic soft tip
- Tungsten portion in the tip provides excellent X-ray visibility
- PTFE coating provides a smooth wire surface to ease advancement

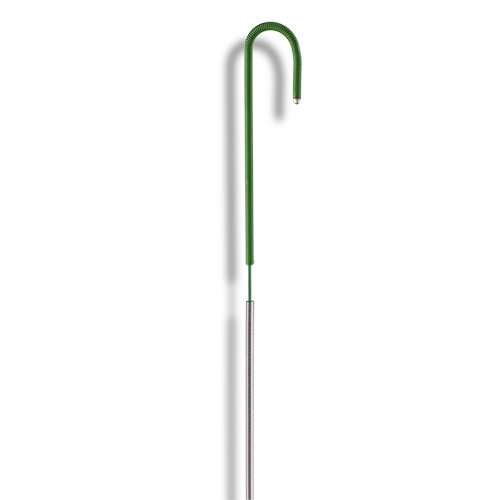

MOVABLE LINE GUIDE WIRE
Standard Length: 150 cm
Standard Diameter: 0.025“ – 0.035“
- Straight or J-tip
- Movable core wire
- Handle part for ergonomic controlling
- PTFE coated core wire facilitates advancement

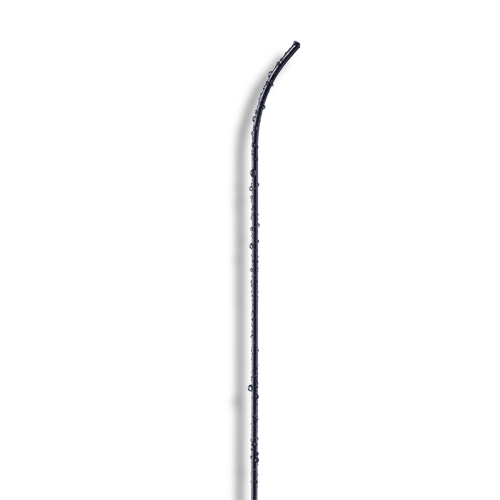

HYDRO LINE GUIDE WIRE
Standard Length: 150 – 260 cm
Standard Diameter: 0.035“
- Straight or angled tip
- Nitinol core wire
- Regular or high stiffness
- Hydrophilic coating over complete length
- Only available without EPflex certification in vascular surgery

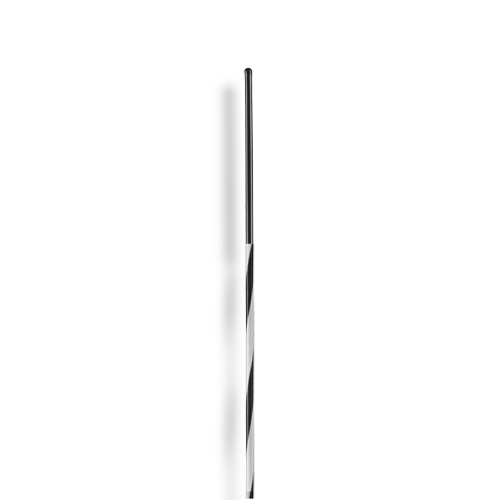

MR LINE GUIDE WIRE
Standard Length: 150 – 260 cm
Standard Diameter: 0.035“
- Fiber composite as core material
- Different levels of stiffness available
- Radiopaque at the tip
- MR Conditional at 1.5 T and 3.0 T
- MR-visible over the complete length
- Non-magnetic and non-conductive
